Standard Tolerance
Varies by option
Switch Type
SPST (single pull / single throw) normally open | normally closed available upon request
Switching Medium
Air; compatible fluids on "High" port side
Mechanical Capability
Pressure switch, vacuum switch, differential switch
Mechanical Life
More than 20 million cycles
Proof Pressure
Varies by option
Operating Temp.
+40°F to +150°F (standard) | -46°F to +205°F (contact us) | +50°F to 86°F (700 range)
Case Material
Polycarbonate (optional: Lexan 141, Supec®, Ultem®, Noryl®)

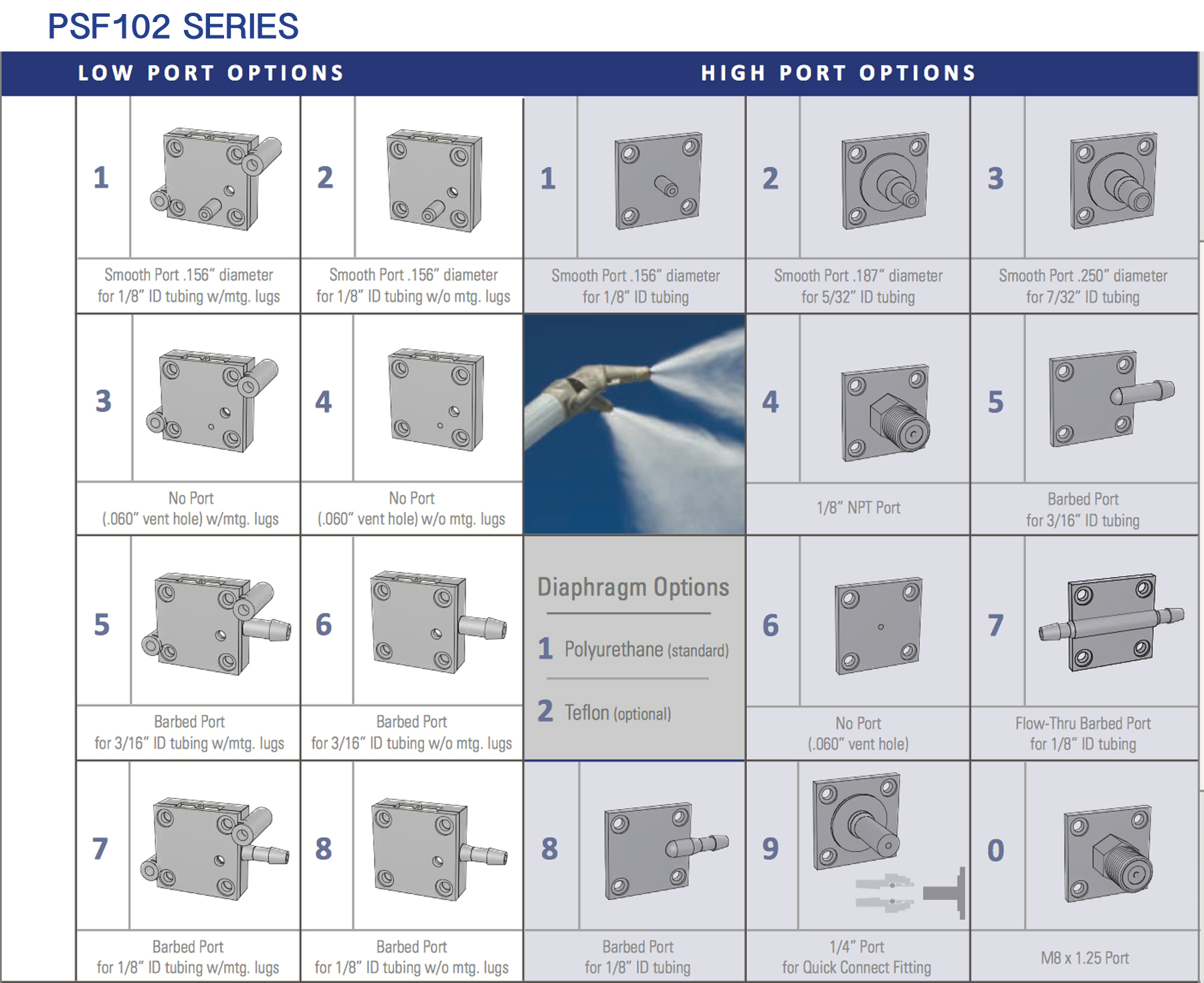

Porting Options
Many standard ports
Diaphragm Material
Polyurethane (Teflon® optional)
(Note: other material options available)
Contact Points
Gold
Electrical Connections
Terminals - .187"x.020" spade (recessed) for use with quick disconnects uninsulated (ref. AMP Faston, 187 Series) (PCB terminals available )
Mounting
#4 Screws through mounting lugs; #2 Screws through eyelets; and mounting clip available
Weight
Less than 10 grams
Current Rating
Up to 40mA resistive
Operating Voltage
AC/DC - 30V or less with resistive load; 120 VAC neon lamp load
Note: For higher load capabilities see our PSF103, PSF109 and Goldtech series switches.
