Standard Tolerance
±20% (Tighter tolerances available)
Switch Type
SPDT (single pull / double throw) normally open (standard) | normally closed (optional)
Switching Medium
Air; compatible fluids
Mechanical Capability
Pressure switch, Vacuum switch
Mechanical Life
More than 1 million cycles
Proof Pressure
Varies by option
Operating Temp.
-40°F to +185°F
Case Material
Polycarbonate (optional: Lexan 141, Supec®, Ultem®, Noryl®)
112 - 113 range use PPS wetted parts
Porting Options
Many standard ports
Diaphragm Material
Polyurethane (Teflon® optional with limited pressure ranges)
Other options available
Contact Points
Silver (Gold available on special order)
Electrical Connections
6" AWG 20 PVC wire (2 or 3 wire). Other length and connector options available (contact us)
Mounting
#4 Screws through mounting lugs; #2 Screws through eyelets;

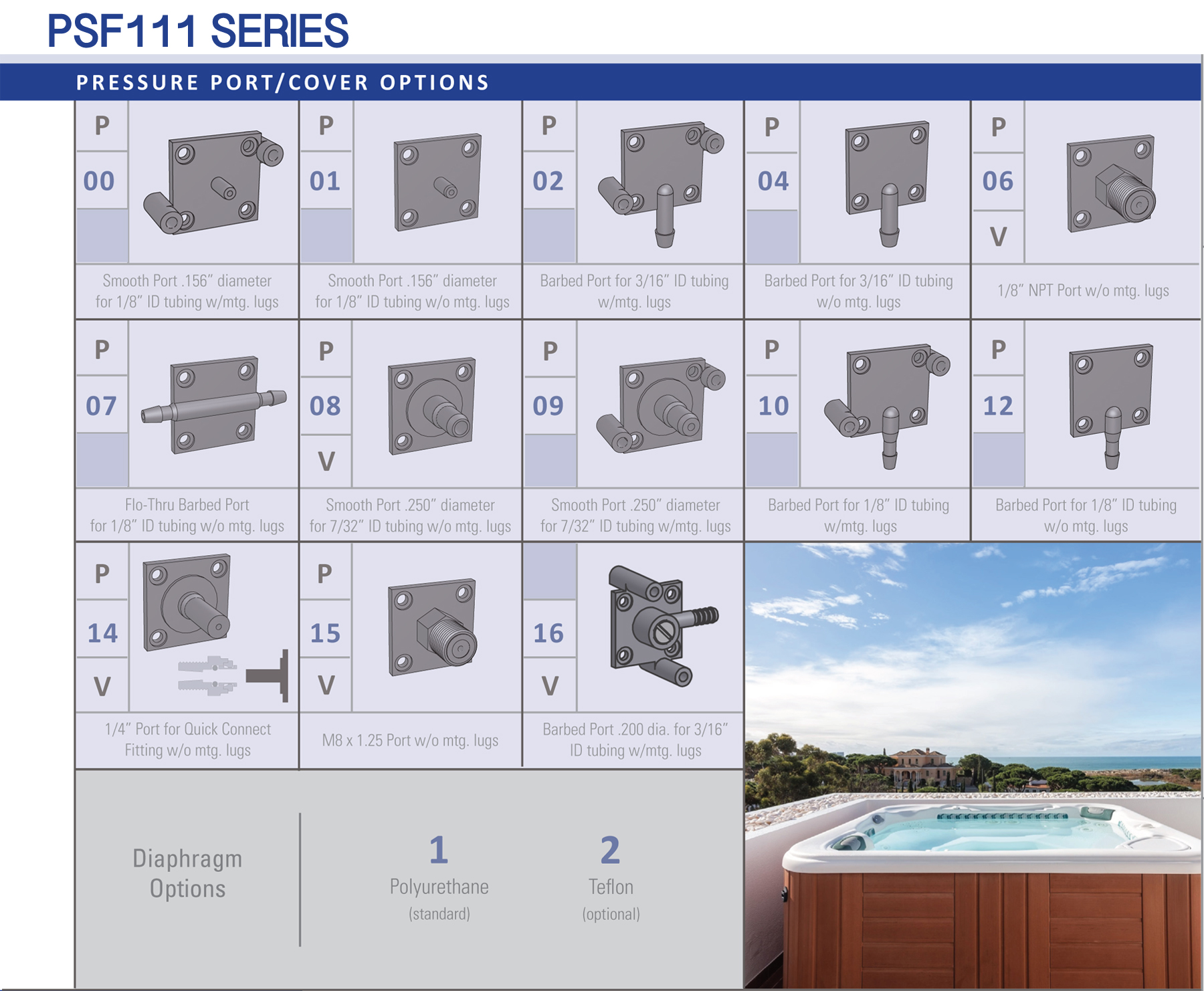

See View Pressure Port/Cover Options below
Weight
Less than 20 grams
Current Rating
3 AMP standard | 4 AMP available
Operating Voltage
12 VDC / 125 VAC
