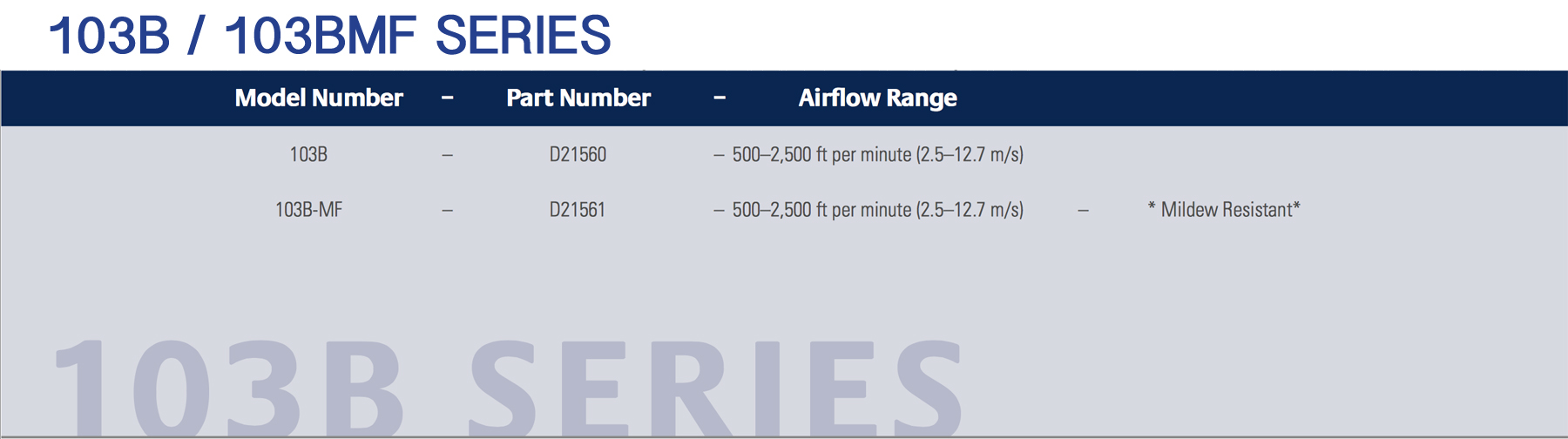

Airflow Ranges
500–2,500 ft per minute (2.5-12.7 m/s)
Switch Operating Range
15°–21° of Operating Stroke
Release Airflow
Max 20% of Airflow Actuation Point (depending on orientation)
Mechanical Capability
Vane-operated airflow switch
Mechanical Life
1,000,000 Cycles
Temperature Range
+40–125°F (4.4-51.7°C)
Housing Material
Plastic Dust Cover and Aluminum Mounting Bracket
Aluminum parts anodized in accordance with MIL-A-8625 Class 2, Type 1
Vane Material / Actuating Lever Wire
Stainless Steel
Electrical Connection
0.205" x 0.031" Terminals
Weight
.04 lbs (0.018 kg)
Switch Type
SPDT Snap Action
Current Rating
5 A 125/250 VAC
Installation Note:
The switch is mounted directly on the air duct. Air stream can flow at any angle from horizontal (with vane in vertical position) to vertically up. When used for horizontal airflow, switch body must be facing upward. Note: Switch cannot be used in airflow projecting downward, and must be located away from ebbing air currents.
