Dietz 161P SERIES

Dietz 161P SERIES Specifications

• Mechanical

  Set Point Ranges

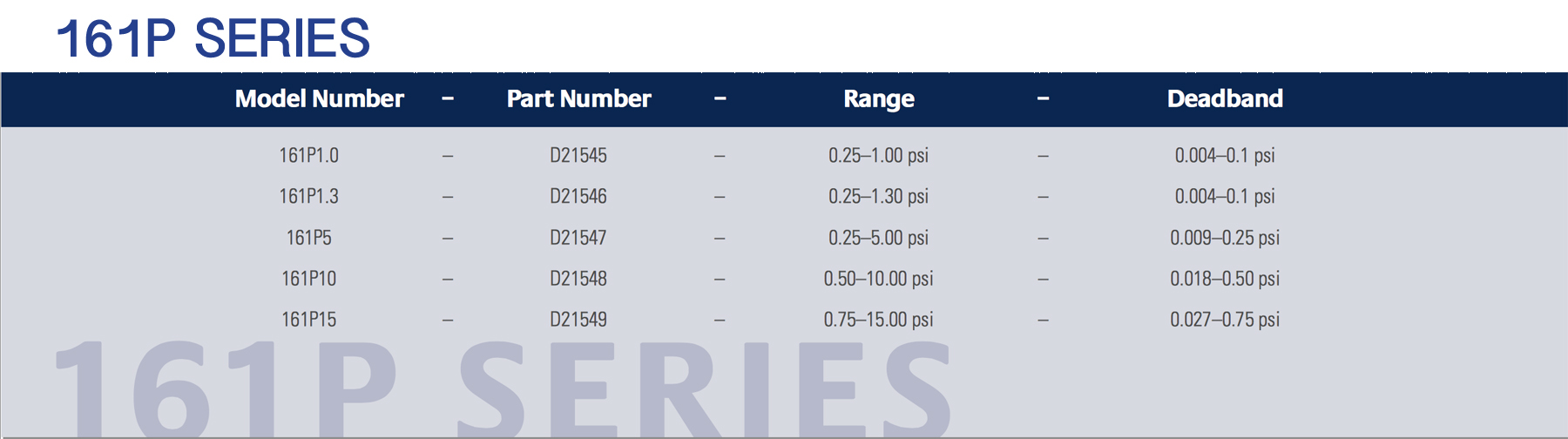

  0.25–15 psi (see chart)
  (17.2-1034 mbar)

  Dead Band
  See Chart

  Proof Pressure
  Up to 35 psi (dependant on range)
  Up to 2413 mbar

  Mechanical Capability
  Low pressure switch

  Mechanical Life
  1,000,000 Cycles

  Temperature Range
  +40–125°F (4.4-51.7°C)

• Physical

  Housing Material
  Steel

  Diaphragm
  0.017" Thick Nitrile / Nylon Coated Fabric

  Pressure Port
  ¼–18 NPT Male

  Electrical Connection
  Screw Terminals

  Weight
  1.75 lbs (0.79 kg)

• Electrical

  Switch Type
  SPDT Snap Action

  Current Rating
  Up to 15 A 125-480 VAC
