Dietz 171D / 170D SERIES

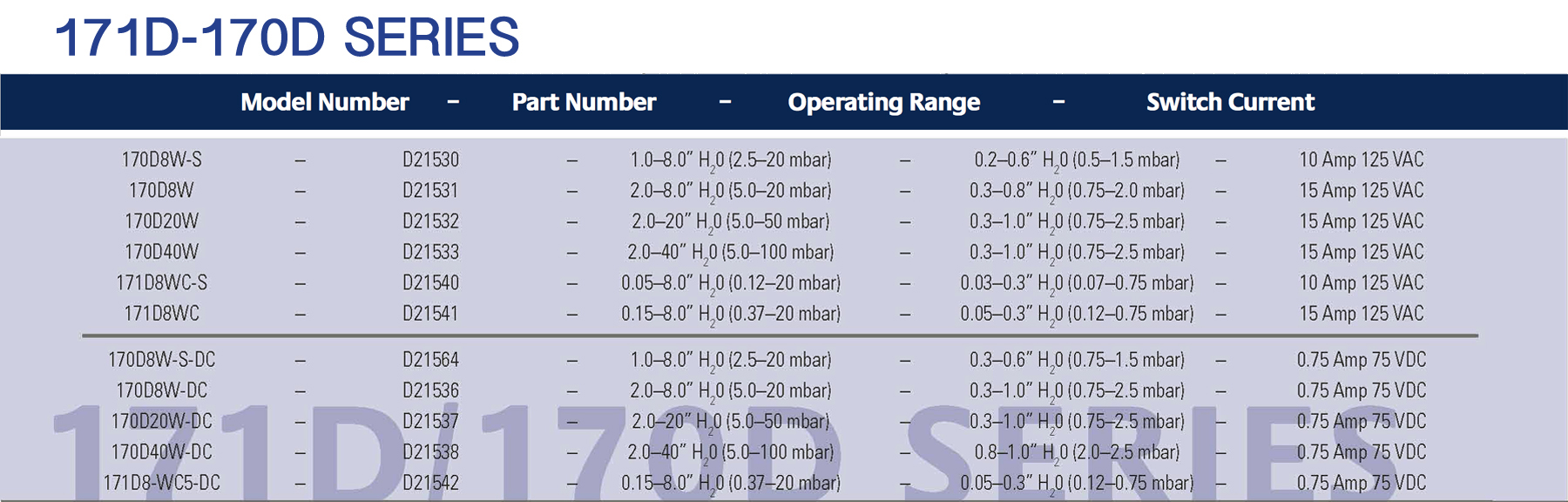

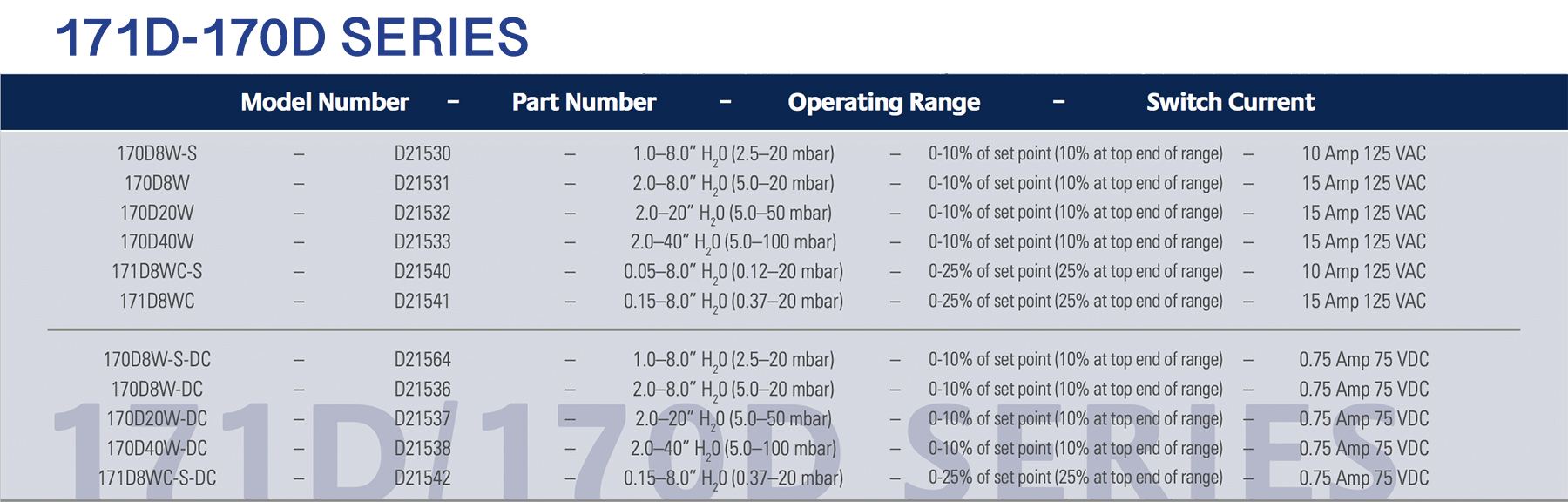

Dietz 171D / 170D SERIES Specifications

• Mechanical

  Set Point Ranges
  0.05"– 40" H2O (0.12-100 mbar)
  (see Detailed Specs sheet)

  Dead Band
  (contact us)

  Proof Pressure
  Up to 40" H2O (dependant on model)
  Up to 100 mbar

  Mechanical Capability
  Low differential pressure switch

  Mechanical Life
  1,000,000 Cycles

  Temperature Range
  -30–160°F (-34-71°C)

• Physical

  Housing Material
  Sturdy Zinc Die Cast, Aluminum Electrical Box

  Diaphragm
  0.008" Buna (Nitrile) Coated Nylon Cloth (model 170) - for temps of -30° F to 160° F.

  0.005" Silicone PE Cloth (model 171) - can be used for greater temperature extremes.

  Pressure Port
  1/8–27 NPT Female

  Electrical Connection
  Screw Terminals

  Weight
  2.510 lbs (1.14 kg)



• Electrical

  Switch Type
  SPDT Snap Action

  Current Rating
  See Detailed Specs sheet
